Older Instructions

Sometimes you may not be happy with the current version of a certain program. I have left instructions for the older versions here in case you need them:

MinGW 5, MSYS 1.0.11

This is the old MSYS/MinGW installation used before the new mingw-get-inst was available.

MinGW 5.x

First, you need to download MinGW. You can either click through the websites mentioned above or go directly to the MinGW download area. Look for the Package "Automated MinGW Installer". There, download the file ending in .exe. The file name should be something like "MinGW-5.1.4.exe". You can also download MinGW Version 5.1.4 from the link given here.

You may also download an older version, and follow the instructions given in the section called “Older Instructions”:

Most of the options in the MinGW 5 installer are pretty straightforward. I will point out some of the more tricky options.

The first one of such options is which "MinGW" package to install. Any of those should work just fine, but I would recommend Current.

Figure 38. MinGW 5 install
MinGW 5 install

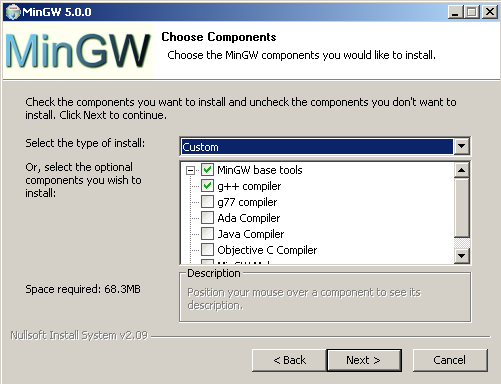

MinGW will ask which components to install. Either select All or at least make sure that you have the g++ compiler checked. This is needed for C++ support.

Figure 39. MinGW 5 install (2)
MinGW 5 install (2)

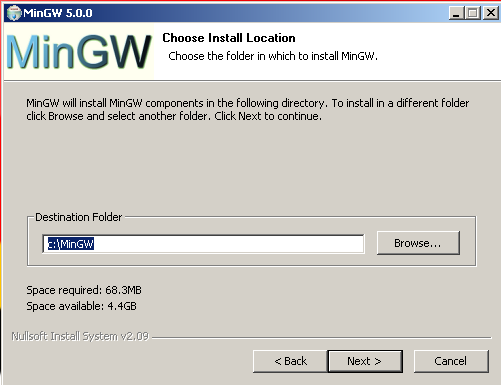

When asked for the install folder, please do not change it. You will have a lot of trouble later on, especially if you chose a path that contains spaces.

Figure 40. MinGW 5 install (3)
MinGW 5 install (3)

That's already it for MinGW. There are two more steps: MSYS and the Environment Variables.

Checkpoint: To test if everything worked, please reboot. Then open up a terminal. (Start/Run, type CMD). Try these commands:

gcc --version

should print the version of gcc. If you get a "File not found", try logging out and logging back in, or even rebooting your computer. If it still does not work, you have not installed MinGW correctly. You may also need to set your environment variables manually (see below).

g++ --version

should print the version for g++. You did select the "g++ compiler" I hope. If not, install again!

GDB (optional!)

This section is completely optional. You may skip it and go directly to the section called “MSYS 1.0.11”.

If you want to use the debugger, you may have to install it separately. This is the case with MinGW 5.0.2, it may be different in other versions. Download it from the same page, look for a package starting with gdb and ending with .exe. At the time of this writing (Apr 29) the current version was "gdb-5.2.1-1.exe". Install (double-click) that .exe, select all the default options (make sure you select the same MinGW directory as you did during the MinGW install).

I have received a report that gdb-6.3-2 does not work. So I would advise using the older version or waiting for a newer one.


gdb --version

should print the gdb version. This is optional.

MSYS 1.0.11

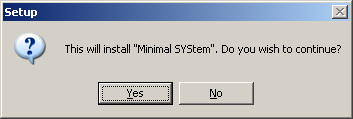

Unfortunately MinGW is not enough. We also need the MSYS tools from the same download page. Go there again, to the "Current" section and look for "MSYS Base System". Again, look for the file ending in .exe, as this time: "MSYS-1.0.11.exe". You may have to expand the "Release Candidate" section. Or you may use the link here to MSYS-1.0.11.exe. Download it and start it. You should get a window like this:

Figure 41. MSYS install
MSYS install

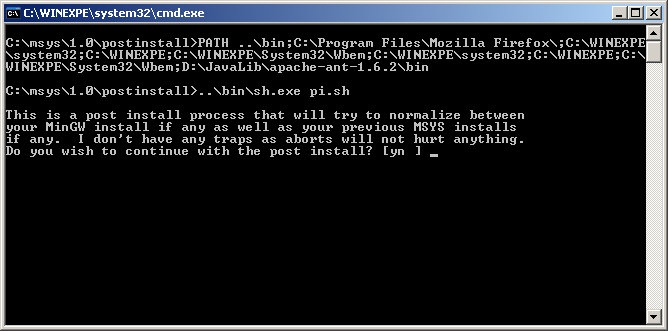

If you accept all the default options, after a while there should be a black and white window, similar to this:

Figure 42. MSYS asking for post-install
MSYS asking for post-install

To continue the install type in y and then Enter. The next question reads like this:

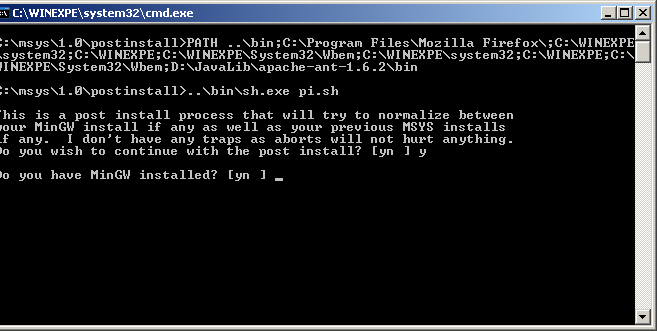

Figure 43. MSYS asking for MinGW
MSYS asking for MinGW

Which you can also answer with y Enter. The next question is a little bit more tricky:

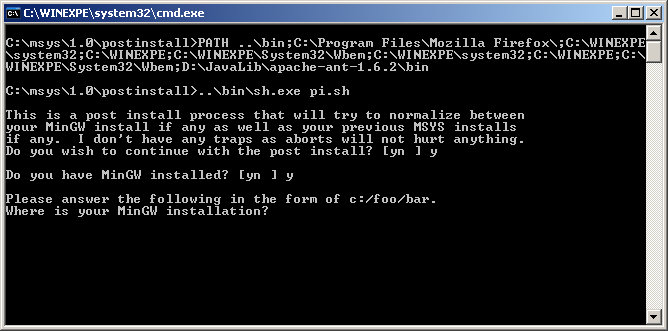

Figure 44. MSYS asking for path to MinGW
MSYS asking for path to MinGW

What they want to know is where you installed MinGW to and that you replace all backward slashes (\) by forward slashes (/). If you followed the instructions, the answer here will be:


Caveat: If you have not used the default paths, but instead have installed MinGW in a different location, such as C:/Program Files/MinGW, where the path contains spaces and / or is longer than 8 characters you may have to replace that particular path component with its DOS short pathname, such as C:/PROGRA~1/mingw.

Caveat2: The installer may be case sensitive. Please make sure you have written MinGW in the same capitalization as during your first install, in some cases you will have to enter c:/mingw (note capitalization!).

The very last question just asks you to press a key:

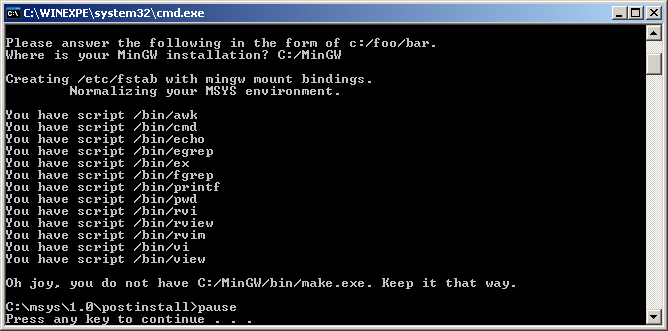

Figure 45. MSYS installing correctly
MSYS installing correctly

Where you can press any key you like to continue. Setup will come back and ask you if you want to read a welcome note and the README file. You probably don't want either one, but it does not hurt to look. Anyways, once you hit "Finish" you are done with the setup. Now you have to set up your Path environment variable.

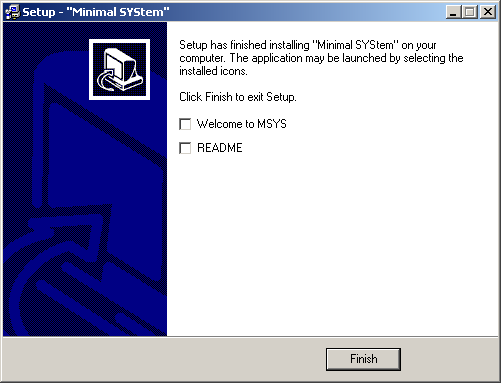

Figure 46. MSYS is done
MSYS is done

Installing the CDT on Eclipse 3.4


This is only required if you did not download the CDT version as described above. Please check if you are able to create a new C++ project (as described in the section called “Hello, World!”) before going through this section!

In the "Help" menu select "Software Updates..."

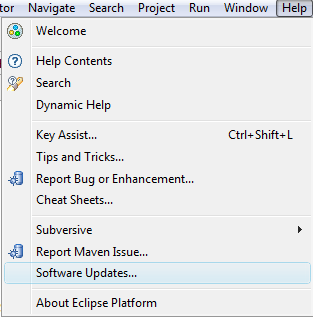

Figure 47. Select Software Updates... from the menu
Select Software Updates... from the menu

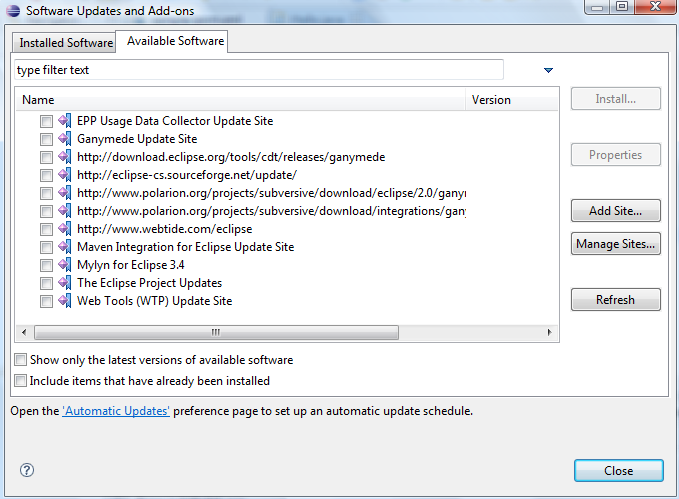

This will show you the list of available software update sites. If you are luck you already have the CDT update site configured. Search for an entry which contains the String "cdt", for example http://download.eclipse.org/tools/cdt/releases/ganymede.

Figure 48. Main Software Update page
Main Software Update page

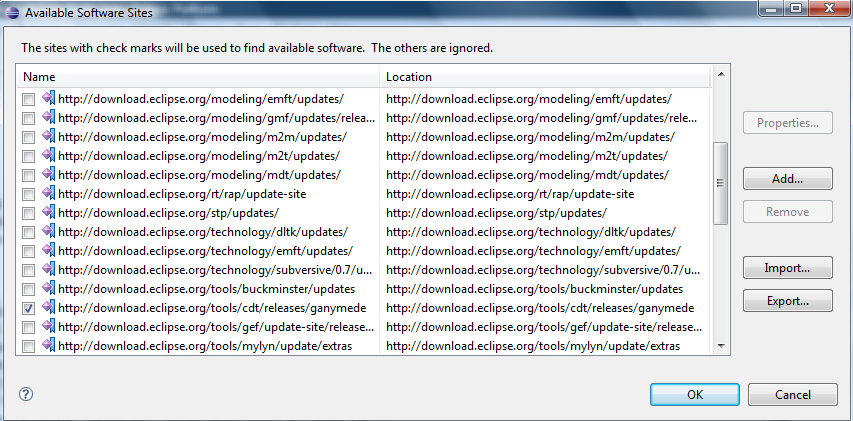

If there is no site for cdt available, go to "Manage Sites", and you will get a list of sites.

Figure 49. Manage Software Update sites
Manage Software Update sites

Again, search for a site containing "CDT". If there is no site available, add it (using the "Add..." button), adding http://download.eclipse.org/tools/cdt/releases/ganymede (the address may be different in future versions of Eclipse, this is for 3.4!)

Also, make sure the checkbox next to the Address is checked. Otherwise the site is configured, but ignored by Eclipse. Leave this page and go back to the main Software update page.

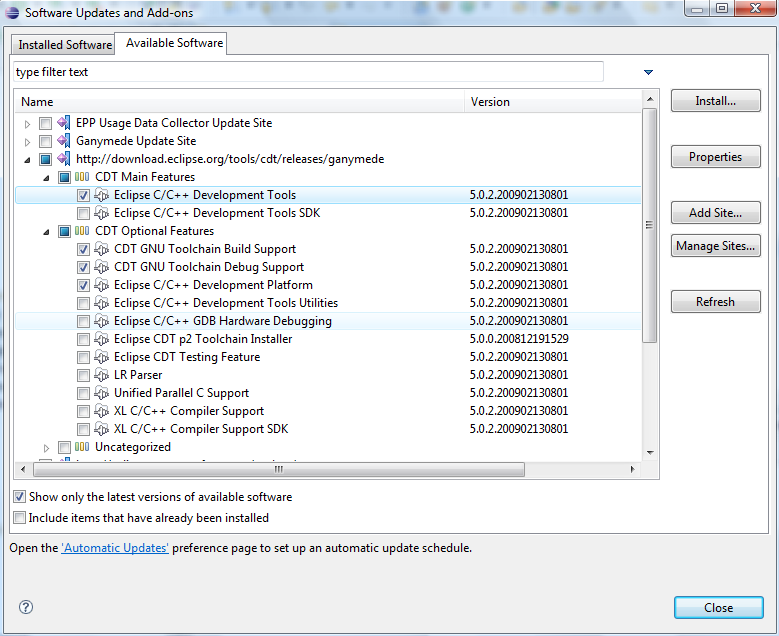

Expand the CDT site, and find the latest version of the CDT. Make sure you select at least the following:

  • Eclipse C/C++ Development Tools

  • CDT GNU Toolchain Build Support

  • CDT GNU Toolchain Debug Support

  • Eclipse C/C++ Development Platform

Figure 50. Select CDT from the Update Site
Select CDT from the Update Site

The select "Install..."

You will have to confirm the selection with "Finish"

Downloading and installing will take a while. Once its done it will ask you to restart Eclipse. This is a good idea, so select "Yes".

Figure 51. Restarting the workbench
Restarting the workbench

Once Eclipse has restarted you now need to configure it for your computer.

Hello, World! in older versions of CDT

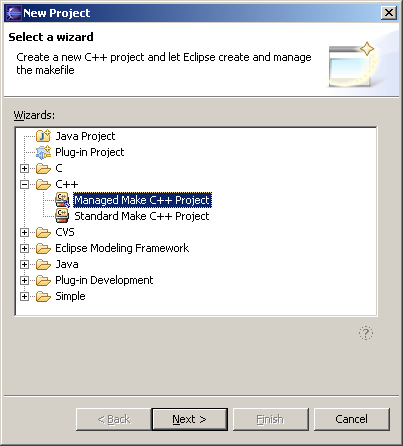

Once you are in Eclipse, you are given an empty workspace. You now have to start a new project. To do so, select "File" / "New" / "Project...". Expand the section "C++" and select "Managed Make C++ Project", then click "Next >".

Figure 52. New Project screen
New Project screen

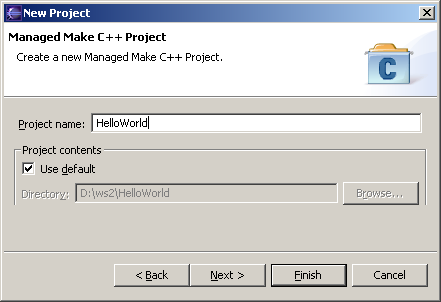

On the next screen, you have to give your project a name. In this case, it will be "HelloWorld", however, you may use any name you like. Leave the "Use default" in "Project Contents" checked.

Figure 53. New Project Name
New Project Name

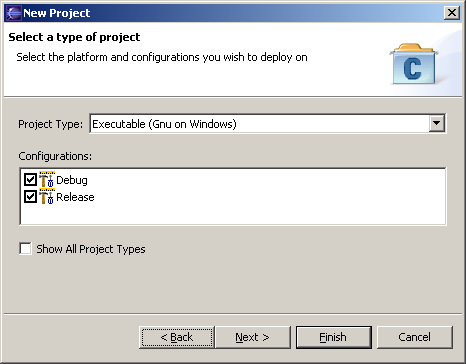

The next two settings about "Project Type" and additional settings are usually OK, so we'll just leave them:

Figure 54. New Project Platforms
New Project Platforms

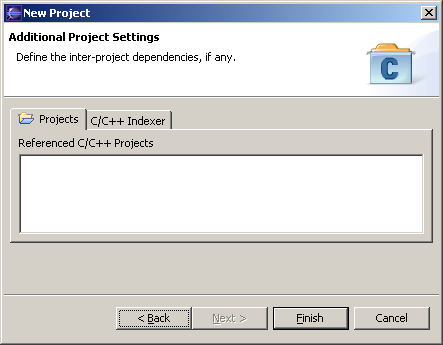

Figure 55. New Project Settings
New Project Settings

Eclipse will now generate a few things, and then ask you if you want to switch to the C/C++ Perspective. This is a good idea, so say yes.

Figure 56. Perspective Switch
Perspective Switch

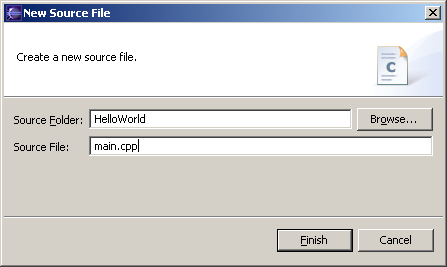

Great. You have a project now. However, it currently does not have any files. So select "File" / "New" / "C Source File". It will then ask you for the name of the file, type in something like "main.cpp".

Figure 57. Create a new Source File
Create a new Source File

You will immediately get an editor window for your file. Eclipse will also auto-build your project every time you save. So type in something like this and hit save, and it should compile automatically:

Figure 58. Example Hello World application
Example Hello World application

Now here comes the tricky part: On the left pane, select "C/C++ Projects", expand "Binaries" and you should see and executable (HelloWorld.exe). Now right-click that executable, and select "Run" / "Run Local C/C++ Application". If everything goes well your output will be in the bottom right window in the "Console" tab and it should say "Hello, World".

Figure 59. Running the example Hello World application
Running the example Hello World application

Congratulations! You have successfully installed a compiler, a build system and an IDE. You have successfully created, edited, compiled and run a project. You should now be able to start your own projects!

Eclipse 3.1 with CDT 3.0

Downloading Eclipse 3.1

Now we are finally ready to install Eclipse. Go to the Eclipse website and look for "Downloads". It will automatically try to figure out your OS and give you an option like "Download now: Eclipse Platform SDK 3.1, Windows.". Do it. You will receive a .ZIP file. Use either FilZip or your favorite ZIP Program (Windows XP and Mac OS X have .ZIP support build in) to unpack the file. Move the unpacked folder to any location, for example C:\Program Files\eclipse. You can now start Eclipse by double-clicking it.

Figure 60. Eclipse installed into C:\Program Files\eclipse
Eclipse installed into C:\Program Files\eclipse

First Run of Eclipse

However you installed eclipse, you should now be able to run it. Double-click the icon or start the appropriate script in UNIX and Eclipse's splash-screen will appear:

Figure 61. Eclipse splash screen
Eclipse splash screen

Immediately after that Eclipse will ask you for your workspace location. It defaults to: C:\Program Files\eclipse\workspace which is actually very bad. Depending on where you want to use Eclipse, please set your workspace to the appropriate folder. If you are in a computer lab, check their policy on personal home folders. If you are on your own computer, a place within your personal settings is usually best:

Figure 62. Eclipse asking for workspace
Eclipse asking for workspace

If you always want to use the same workspace, you may select the Use this as the default... and you'll never have to worry about workspaces again. This is usually a good idea once you've used Eclipse for a while. Finally Eclipse starts up with the welcome screen:

Figure 63. Eclipse welcome screen
Eclipse welcome screen

And if you select the "Go to the workbench" in the top right corner, then you are right in Eclipse and you can start developing in Java. However, since we want to develop in C++ just continue with the next section.

Installing the CDT

Eclipse by default comes with support for programming Java, the support for C/C++ (the C Development Toolkit) has to be installed as an update.

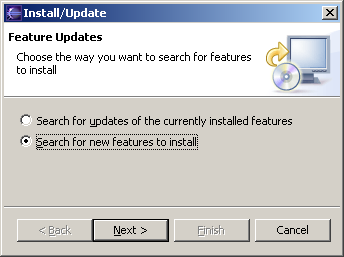

In the "Help" menu select "Software Updates" and the "Find and Install...". You should get something like:

Figure 64. Find and Install software updates
Find and Install software updates

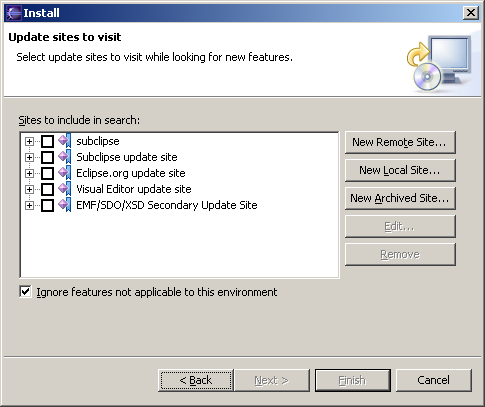

Select "Search for new features to install", and then "Next >". You should get:

Figure 65. Select update sites
Select update sites

Leave "Ignore features not applicable to this environment" checked and de-select all update sites (you will probably have less in there than I do). Select "New Remote Site" and then enter the following information:

Note: What name you enter does not matter. Here is the URL for cut-n-paste: http://download.eclipse.org/tools/cdt/releases/eclipse3.1

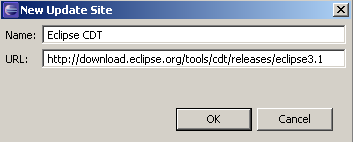

Figure 66. Add new update site
Add new update site

Hit "OK". Now select "Eclipse CDT" and then "Next >". It should connect to the Eclipse CDT update site and look for the newest version. Then it displays a window like this one:

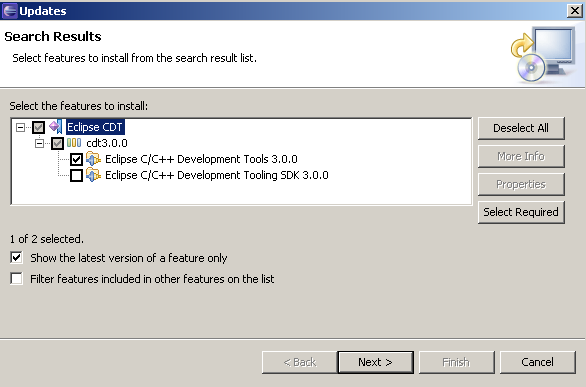

Figure 67. Select CDT to install
Select CDT to install

Select the latest version of the "Eclipse C/C++ Development Tools". (3.0.1 at the time of this writing) Do not select any other features. Hit "Next >".

In the next window, you will have to "accept" the license, and then select "Next >".

It will again show you an overview, which you can just accept and select "Finish".

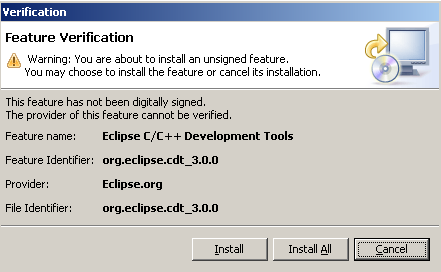

It will warn you that the Eclipse CDT is an "unsigned feature". But you can just ignore that and select "Install All".

Figure 68. Unsigned JAR
Unsigned JAR

Downloading and installing will take a while. Once its done it will ask you to restart Eclipse. This is a good idea, so select "Yes".

Figure 69. Restarting the workbench
Restarting the workbench

Once Eclipse has restarted you now need to configure it for your computer.

Eclipse 3.1 with CDT 3.0.0 (and 3.0.1) has a bug on windows! If you are on windows, please close eclipse, and delete the file spawner.dll in eclise\plugins\org.eclipse.cdt.core.win32_3.0.0\os\win32\x86. This bug appears every time you try and run short programs (they will not show any output). More information is available in Eclipse Bug 102043. This bug is fixed in CDT 3.0.2.

MinGW 4.x

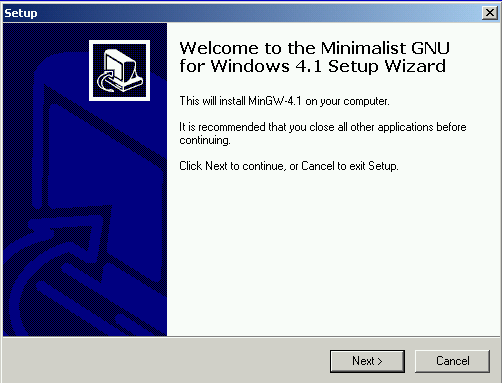

MinGW 4.x comes with a new installer that asks much more questions than the old one. The current (Aug 05) version is MinGW 4.1.1.

Please note: The MinGW 4.x installer downloads parts of the MinGW suite during the install! You must have an internet connection during the install. If this is not an option for you, download the last version (3.1)

Figure 70. MinGW 4.1 install
MinGW 4.1 install

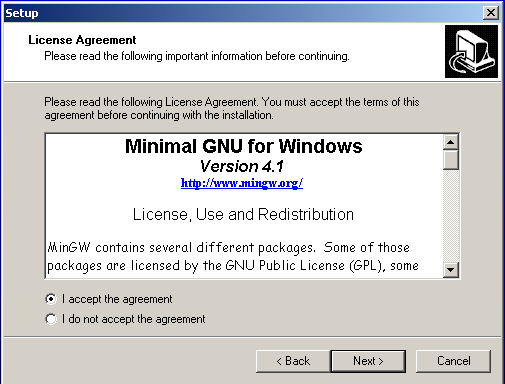

Most installation options are pretty straight forward. You will have to accept the license agreement:

Figure 71. MinGW license
MinGW license

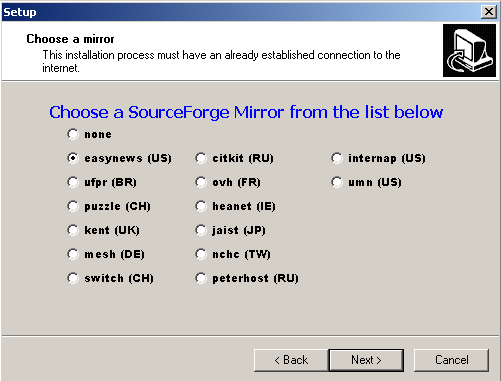

It will ask you for a download mirror. Of course, you should pick one close to your country. If you are installing from home in the us, use a commercial mirror, if you are installing from a university connection, chose a university mirror.

Figure 72. Mirror Selection
Mirror Selection

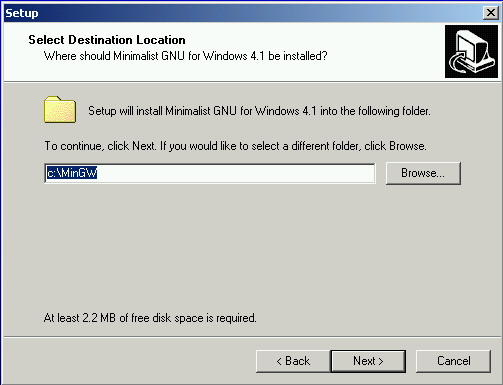

When installing MinGW, it is advisable to use the default directory C:\MinGW. Do not use a path that contains spaces, this will give you problems later on.

Figure 73. MinGW installation directory
MinGW installation directory

If all you need MinGW for is compiling your programs from within Eclipse, the Compact install should be enough:

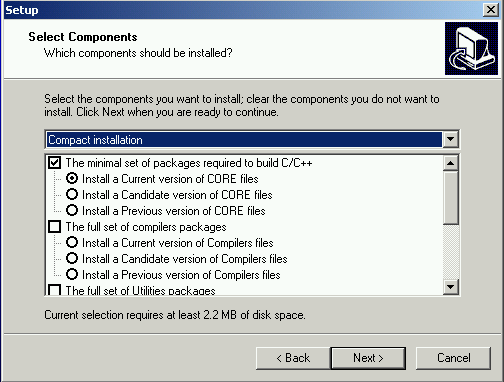

Figure 74. MinGW installation components
MinGW installation components

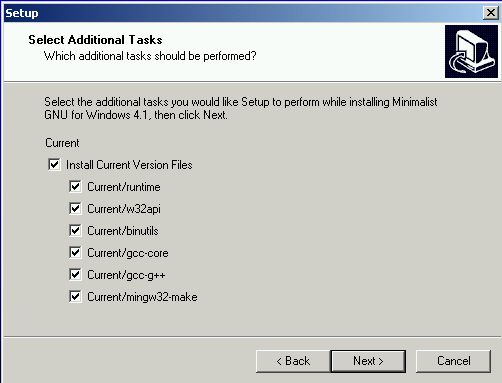

Next, it will ask you for additional tasks to perform. Select all of them:

Figure 75. Additional Tasks
Additional Tasks

MinGW will download and install your selected components. After a little while your installation is done. You will now need to install MSYS.

MinGW 3.1

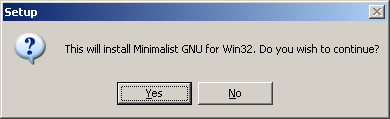

At the time of this writing this was "Download MinGW-3.1.0-1.exe", but the version number may be higher now. Once downloaded, start the program. It should look similar to this:

Figure 76. MinGW 3.1 install
MinGW 3.1 install

If you accept all the default options MinGW should install just fine.
